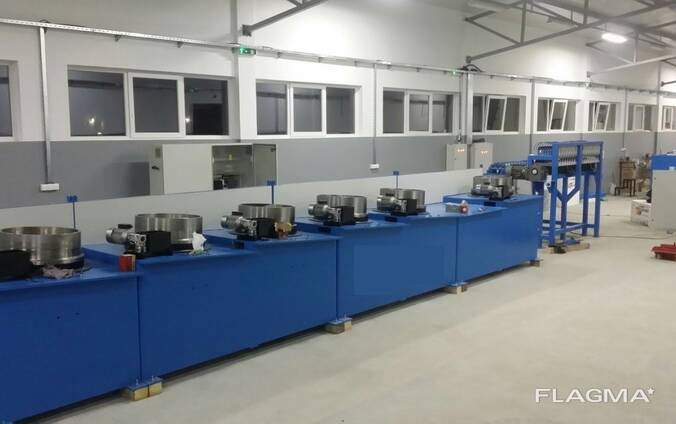

Equipment for drawing rebar W-6 (3-6 mm)

W-6 Rebar Drawing Machine

Vertical Wire Unwinder (Vertical Wire Spooler) 1 pc.
Mechanical Descaling Unit 1 pc.
Rebar Drawing Machine (W-8) 1 pc.
Rolling Cassettes 1 pc.
Winding Unit 1 pc.
Spools 10 pcs.

Vertical Wire Unwinder (Vertical Wire Spooler)
Rebar Spool Dimensions: Max. spool weight 2000 kg
Dimensions: 4500 x 2000 x 1500 mm
Mechanical Descaling Unit
- Used for cleaning rebar, made of high-quality steel.

Inlet diameter 6.0 mm
Outlet diameter 3.0 mm

Speed: Design speed 10 m/sec
Machine speed 8 m/sec (max)
Feed speed 1 m/sec
Number of blocks: 8 blocks
Block diameter: 600 mm

The blocks are made of high-quality cast iron. The first block has automatic control adjustment, achieved using inductive sensors. The system maintains the accumulation level set by the operator.

Each synchronization block with a hand sensor.
Digit holder: 200 x 160 x 300
Hand sensor: Analog sensors
Length measuring part: Encoder shaft for measuring machine length and speed.

Cooling: Matrices: Water
Blocks: Water
Water: Consumption: Approx. 15 m3/h
Pressure: 2-3 bar
Temperature: 20-30°C
Water inlet: Left side
Water outlet: Right side

Motor drive: AC motors with protection.
Control system: Siemens PLC

Data input: High-quality touch panel.

Distribution cabinet: High-protection sheet steel construction. The distribution cabinet is designed with an air-cooled system. Power supply: Operating: 3 x 380 V AC, 50 Hz
Control: 24 V DC
Machine power: Block motors: 22 kW
Die holder motors: 0.75 kW
Total power: 200 kW

Specifications:
Total power, kW: 150
Block power, kW: 22
Rebar input diameter, mm: 6.5
Rebar output diameter, mm: 3.0
Rebar drawing speed, m/sec: 8 m/sec
Die and drum cooling: water
Number of animals: 6 moving cassettes
Machine dimensions: 1500 x 11000 mm
Weight: 13000 kg

Operating modes:
1. Automatic
2. Manual
Rebar winding mechanism length: 1600 x 1200
Winding power Valve mechanism power: 15 kW
Operating space required: 3000 x 25000 mm

Control: Siemens PLC
Siemens display

Frequency controller: Control Techniques
Motors: Strojna
Sensor: Turck

12-month warranty
