Automatic Welding Machine B ROLL VM2000 / 50-200C

We offer an automatic welding line.

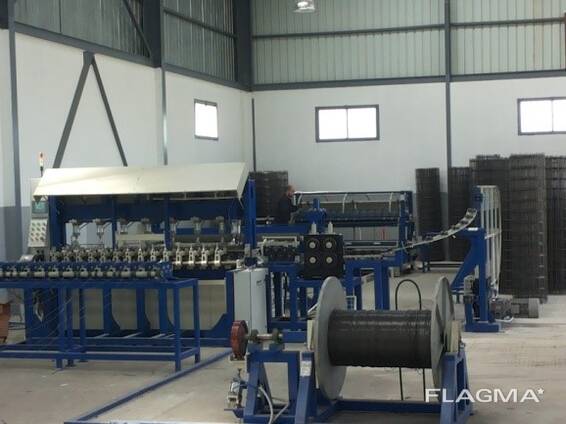

ROLL VM2000 / 50-200CC Automatic Welding Machine (Sweden)

Offer consisting of:

Spool stand _________________________: 1

Wire straightening unit for longitudinal wires __ __ :1

Welding unit ___________________________ ___:1

Wire insertion unit for cross wires _______:1

Cutting holes for finished mesh ____________:1
Mesh panel stacker _______________ ____: 1

1. Spool stand

This device is used to straighten longitudinal wires. The unit has a sensor to detect the presence of a wire. If there are no wires, the sensor will stop the machine.

The structure is made of welded steel.

Wire direction: Left to right

Number of wire positions: 40

3. Welding unit

Suitable for welding: low-carbon steel wire

Welding range: 2.00 ÷ 6.00 mm

Speed: 60 - 80 strokes/min (depending on the mode and wire)

Step length: 50/100/150/200 mm

Cross pitch: adjustable from 50 mm ÷ 400 mm

Mesh width: 2000 mm

Number of transformers: 10 with double secondary

Transformer power: 10x60 kW

Transformer cooling: water

Operating mode: 1. All simultaneously

2. Individually

Control system: with PLC

4. Unit for adding a cross Wires

Device for straightening and adding cross wires. The unit has a traction motor that adds the cross wire to the compensator, and then a high-speed servo motor adds the wires to the machine.

Spool stand: with brake

Traction motor: 2.00 ÷ 6.00 mm

Sensor in compensator: two inductive sensors

Sensor in compensator: two inductive sensors

5. Shears for cutting finished mesh

Size: 2800 x 1600 x 500 mm

Cutting width: max. 2000 mm

Cutting type: hydraulic

Power: 5.5 kW

6. Panel mesh stacker

This unit is used for stacking and pushing out finished wire mesh.

Construction: Welded steel structure
Maximum mesh width: 2000 mm
Maximum panel length: 3000 mm
Rolling type: Electric motors
Reset type: Pneumatic

Specifications:

Mesh width, mm: 2000 mm

Mesh length, mm: Adjustable, according to software

Wire diameter, mm: 2.00-6.00 mm

Longitudinal pitch, mm: 50, 100, 150, 200

Transverse pitch, mm: Adjustable: 50-400

Number of electrodes: 40

Control panel: Siemens PLC

Yaskawa servomotors

Number of transformers: 10

Transformer power, kVA: 60

Number of welding cycles/min: 60-80

Operating mode

1. Combined

2. Individually

Voltage, V 3x380

Electrode Cooling: Water

Air Flow Rate, m³/min: 3.5-5

Air Pressure, bar: 6-7.5

Water Flow Rate, l/min: 30-45

Adding Longitudinal Wires - Automatic Reel

Adding Crossover Wires - Automatic Reel

Wire Mesh Production Line Dimensions, mm: 40,000 x 7,000 x 2,000

Additional Options:

1. Mesh Rolling Unit

This unit is used to roll the finished mesh into a reel.

The maximum rolling length is 55 meters.

Construction: Welded steel structure

Maximum mesh width: 2,000 mm

Maximum mesh length: 55 m

Rolling Type: Electromotors

Power: 7.5 kW

12-month warranty
