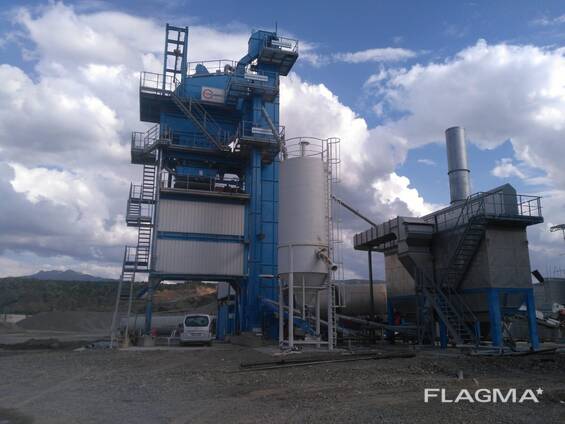

Used asphalt plant Benninghoven ECO- 320 t/h, 2013

Used Benninghoven ECO 4000 Rapid-Erect (Container-Type) Asphalt Mixing Plant - 320 TPH, 2013

High mobility and optimal operational flexibility distinguish this type of plant. It can be operated stationary but also easily transported to other construction sites. The main distinguishing feature of ECO asphalt mixing plants is the design of their main components, which fits within a standard (20- or 40-foot) shipping container, ensuring easy transportation by truck, sea, or rail.

Production Parameters:

ECO 4000 Asphalt Mixing Plant Model

Mixing Capacity (t/h): 320

Drying Capacity (t/h): 290

General Information: All data applies to material with a moisture content of 4%.

Wind load: 25 m/s; horizontal ground acceleration: 0.4 m/s²; snow load: 0.85 kN/m².

Installation Methods: Permanent = solid concrete foundation; Mobile - mobile steel bases

Pre-dosing system

Number of dispensers 5-tier pre-dosing module

Capacity (m3) 12

Loading ramp Provided by the operator

Loading width (mm) 3500

Drying drum Type TT 11.26

Drum drive power (kW) 4 x 22

Burner Type EVO JET 4 FU liquid Fuel

Burner Power (MW) 24

Dust Removal System

Capacity (Nm³/h) 78,000

Hot Mineral Screen/Silo

Screening Capacity (0–2 mm, t/h) 270

5-Deck Screen

Hot Mineral Silo 17 t/5 chambers (including sand + bypass)

Mixing and Weighing Section

Mixer (kg) 4,000

Mineral Scale (capacity, kg) 4,000

Aggregate Scale (capacity, kg) 400

Bitumen Scale (capacity, kg) 350

Ready Mix Storage Bin/Aggregate Silos

Total Capacity of the MGVS Ready Mix Storage Bin 60 t

(2 chambers + direct loading section)

Aggregate silos: 60 m³ silo for own aggregate, 60 m³ silo for imported aggregate.

Bitumen system: Vertical design, electrically heated and 200 mm insulated

Capacity (m³): 3 x 60

Benninghoven BLS 4000 computer control system:

Switching and power sections, air conditioning, and main low-voltage distribution board

RAP feeding systems

Through the middle ring of the drying drum – 25% RAP loading

The plant is in excellent working condition.

The seller provides maximum assistance in arranging installation supervision and other technical issues related to plant maintenance.
