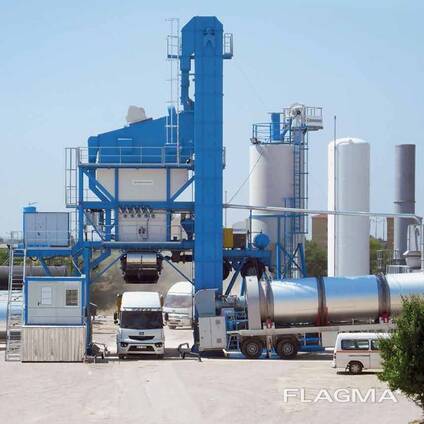

Used Benninghoven MBA 160 t/h Mobile Asphalt Plant, 2008

Used W-Benninghoven Mobile Asphalt Plant - MBA 2000 (160 t/h, Germany), manufactured in 2008.

Used: 750,000 tons.

Technical Specifications:

Benninghoven MBA 2000 Mobile Asphalt Plant
Mixing Capacity (t/h): 160

Drying Capacity (t/h): 145

General Information - All data applies to material with a moisture content of 4%.
Wind load: 25 m/s;
Horizontal ground acceleration: 0.4 m/s²;
Snow load: 0.85 kN/m². Installation options Mobile steel bases (installation site must be suitable for a ground pressure of 350 kN/m²)
Pre-dosing system
Number of dispensers Wheeled 5-section pre-dosing system
Capacity (m³) 8
Loading ramp Yes (included in delivery, minimum 650 mm fill required (provided by operator)
Loading width (mm) 3400

Drying drum
Type MT 8.22 K
Drum drive power (kW) 1 x 37
Burner
Type (standard fuel oil) EVO JET 2 FU liquid Fuel
Burner Power (kW) 11.9
Fuel Types (optional) Natural gas, liquefied gas, coal dust — combined options available
Dust Removal
Capacity (Nm³/h) 42,000

Hot Mineral Screen/Bin
Screening Capacity (0–2 mm, t/h) 160

5-Deck Screen
Hot Mineral Bin 30 t/5 chambers (including sand + bypass)

Mixing and Weighing Section
Mixer (kg) 2,000
Mineral Scale (capacity, kg) 2,000
Aggregate Scale (capacity, kg) 200
Bitumen Scale (capacity, kg) 200
Ready Mix Storage Bin /aggregate silos
Total capacity of the MGVS ready-mix storage bin. Wheeled ready-mix storage bin: 50 t (single-chamber).

Aggregate silos: 50 m³ chassis-mounted silo for own aggregate,
50 m³ chassis-mounted silo for imported aggregate.

Bitumen system
Wheel-mounted, with electric heating and 150 mm thick insulation.

6 horizontal bitumen tanks - 45 m³

2 horizontal bitumen tanks - 50 m³

Controls
Benninghoven BLS 3000 computer control system: switchgear and power components, air conditioning, and main low-voltage switchboard.

Burner
Benninghoven is the world leader in burner production and the only manufacturer of burners that operate on four types of fuel. Thanks to its proprietary know-how, the company offers unique burners with superior performance:
> Simple, modular design
> Compact design
> Inspection covers on both sides
> Internal fan

Drying Drum
According to the process concept, the drying drum is an essential component for asphalt concrete production. It ensures the removal of moisture from the raw material, thereby ensuring its effective bonding with bitumen.

Mixer
The mixer is the core component of an asphalt mixing plant. It is here that the minerals are intensively mixed with the binder and aggregates to produce a homogeneous finished mixture. The mixing cycle, including loading and emptying, lasts 45 seconds.

The mixer is constructed using only high-quality materials. This is complemented by optimal wear protection, ensuring a long service life and a smooth process.

Screening
All mobile asphalt mixing plants are equipped with a five-layer screen as standard. This makes it easy to meet standards and formulation requirements in various countries around the world.

Dust Collection System
Benninghoven dust collection systems/filters are distinguished by their highly compact and modular design. A small number of simple connections ensure quick system installation. Furthermore, the dust collection system is optimally accessible for inspection and maintenance. Thanks to their high-quality finish and thermal resistance, the filter pockets are designed for a long service life.
